MUSMYS / E-406
A clear role.
A dedicated power stage.

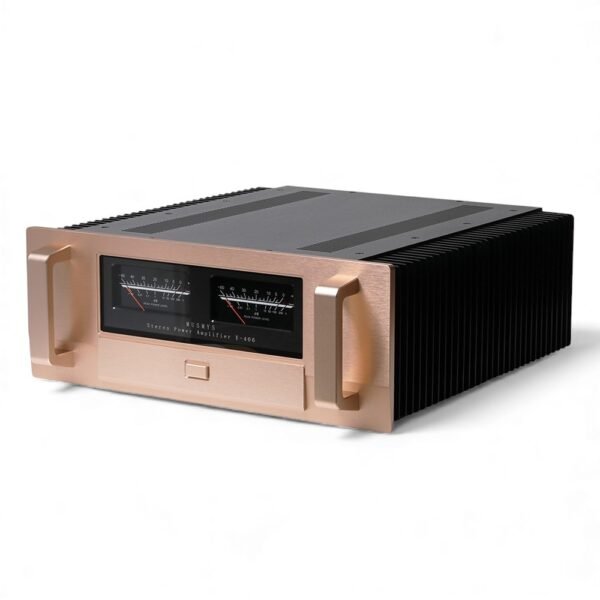

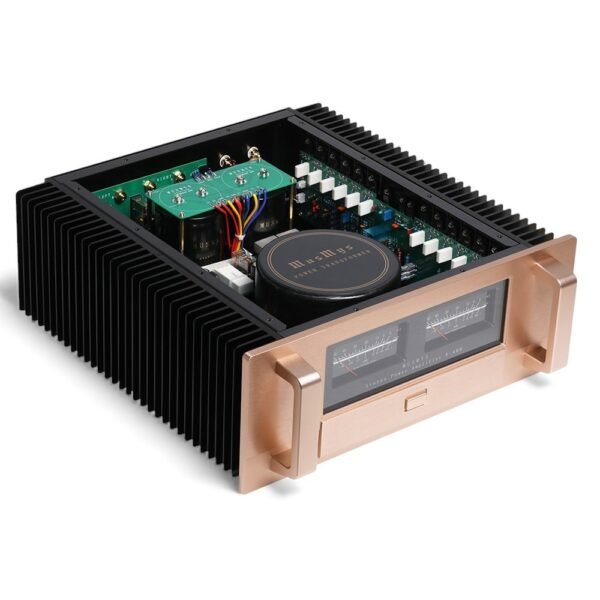

Build your system around a dedicated stereo power amplifier. The MUSMYS E-406 combines a Class AB output stage, balanced and RCA inputs, and dual front-panel meters in a substantial aluminum chassis. Its listed continuous output is 180W per channel into 8Ω or 320W per channel into 4Ω, specified across 20Hz–20kHz.
DESIGN & CONTROL
Built for its role.
Matched to your system.

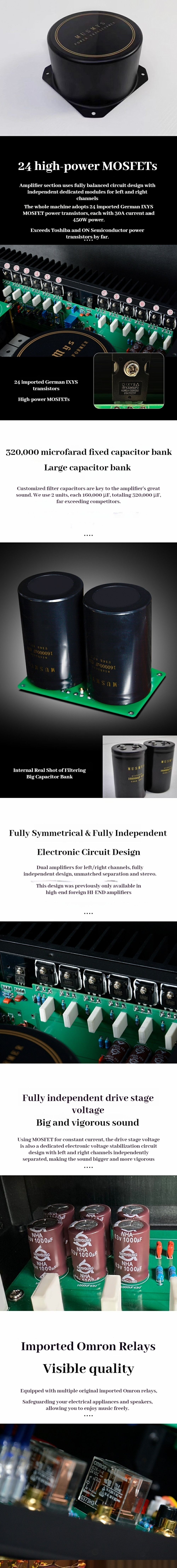

- 24 high-power output transistors in the power stage.

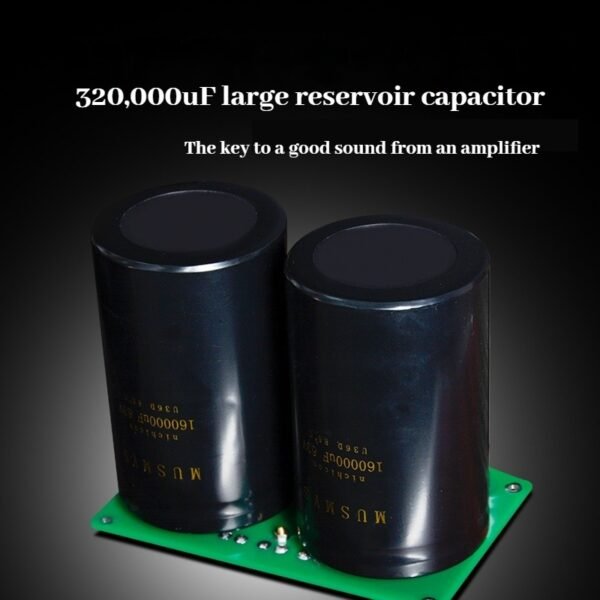

- 850W copper-wound transformer and 320,000µF capacitor bank in the power supply.
- Independent left and right channel amplifier boards arranged symmetrically.
- Mechanical signal relays and independent speaker protection relays for switching and protection.

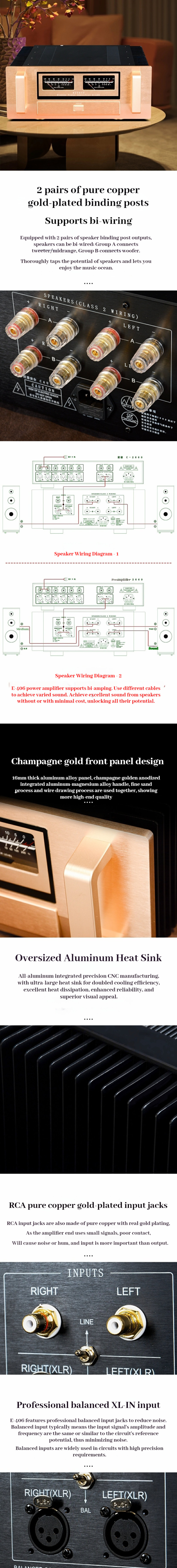

- Dual speaker output groups for bi-wiring compatible speakers. Confirm the speaker wiring requirements before use.

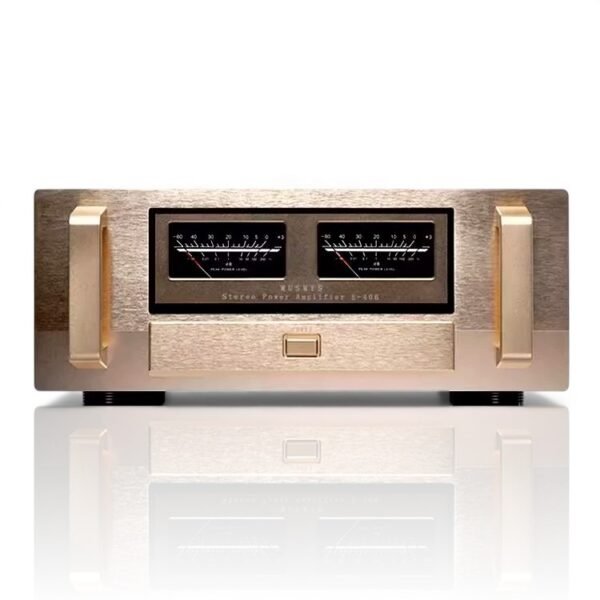

- Dual-meter display and aluminum chassis for a component that makes a clear visual statement in your system.
THE SIGNAL PATH
The right component.
In the right place.

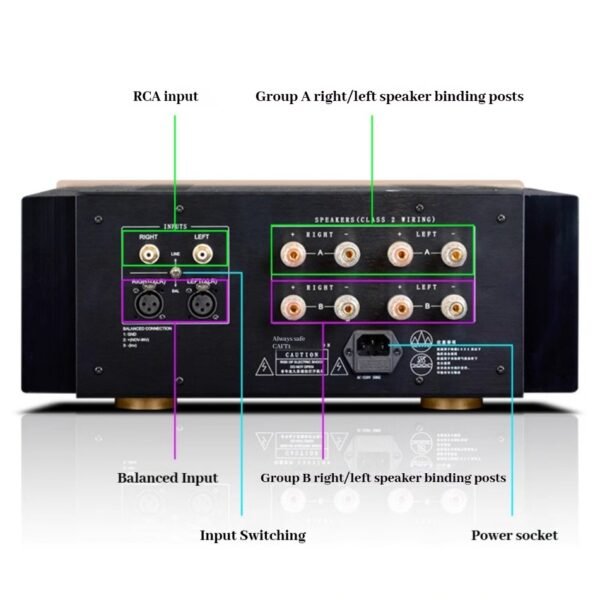

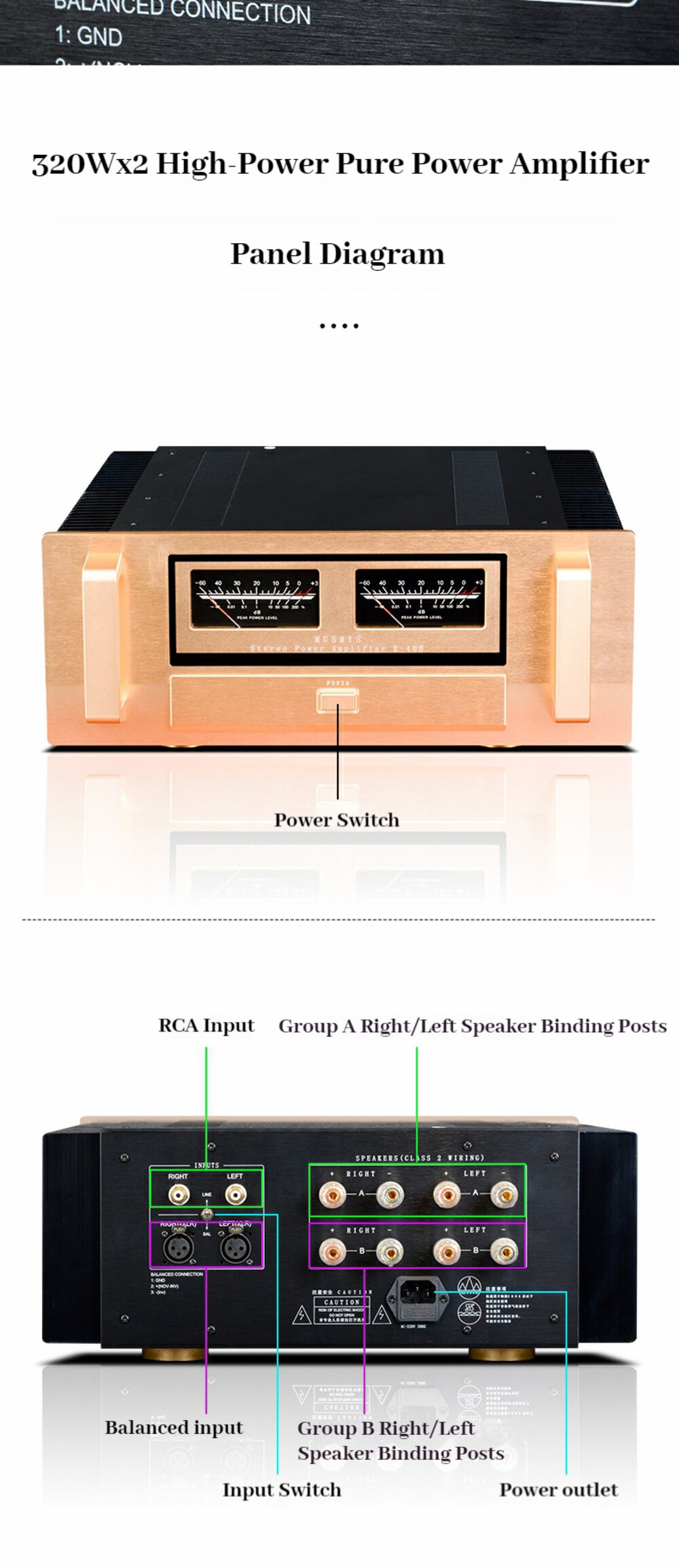

Connect the E-406 to a suitable preamplifier or compatible source with volume-controlled outputs, then connect your passive speakers. Choose the input connection that matches your upstream equipment and confirm speaker compatibility before setup.
DIMENSIONS & PLACEMENT
Give your system room.
430 × 495 × 170mm (W × D × H). Net weight: 21kg.
Use a stable support with sufficient load capacity and leave clearance for connections and ventilation.
TECHNICAL DETAILS
Know the details.
Choose with confidence.
Specifications for E-406. Review system matching, operating mode and mains requirements before connection.
| Amplifier type | Class AB stereo power amplifier |
|---|---|
| Rated continuous output (20Hz–20kHz) | 180W × 2 into 8Ω; 320W × 2 into 4Ω |
| Frequency response at rated output | 20Hz–20kHz, +0/−0.2dB |
| Frequency response at 1W | 0.5Hz–160kHz, +0/−3dB |
| Signal-to-noise ratio | 120dB |
| Total harmonic distortion | 0.005% |
| Input impedance | 40kΩ balanced; 20kΩ RCA |
| Gain | 28dB |
| Input sensitivity | 0.87V at rated output; 0.11V at 1W |
| Dimensions (W × D × H) | 430 × 495 × 170mm |
| Net weight | 21kg |
DELIVERY & AFTERCARE
A considered journey.
From us to your system.
Contact MUSMYS to confirm packaging, destination, freight charges and handling requirements.
- Select your voltage: choose the 110V or 220V version that matches your mains supply. Confirm local voltage and frequency before ordering.
- Plan the space: allow for the 495mm chassis depth, rear connections and clear airflow around the amplifier.
- Prepare your cables: a power cord is not included.
- Check import costs: duties, customs-clearance charges and local taxes are the buyer’s responsibility.
Frequently asked questions
Do I need a preamplifier?
The E-406 is a separate power amplifier. Use a suitable preamplifier or compatible volume-controlled source to control listening level.
Can I use balanced or RCA connections?
The E-406 supports balanced and RCA inputs. Match the connection to your upstream equipment; listed input impedance is 40kΩ balanced and 20kΩ RCA.
Which voltage version should I choose?
Match the 110V or 220V option to your local mains supply. If you are unsure about voltage, frequency or system matching, contact us before ordering.
