MUSMYS / MK-9600
Class A presence.
A dedicated power stage.

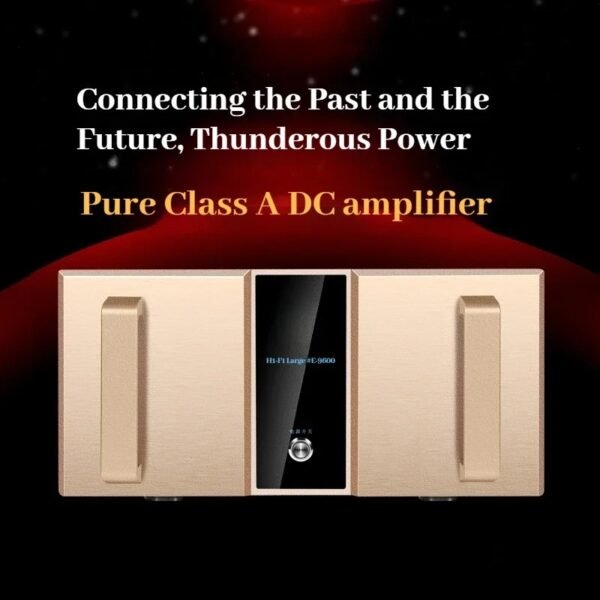

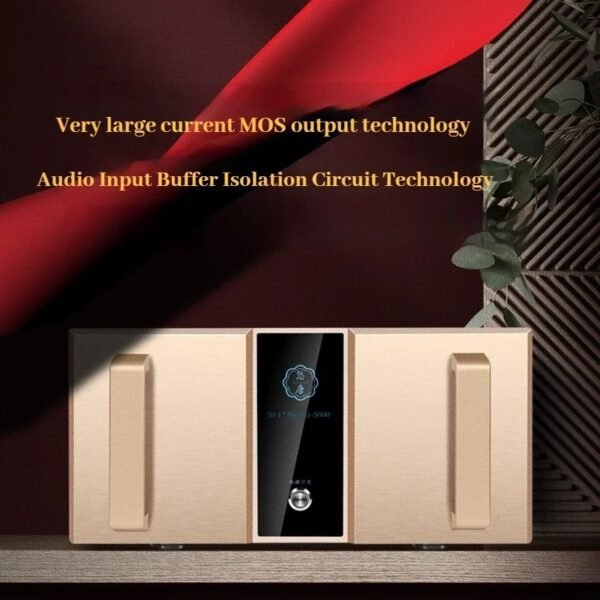

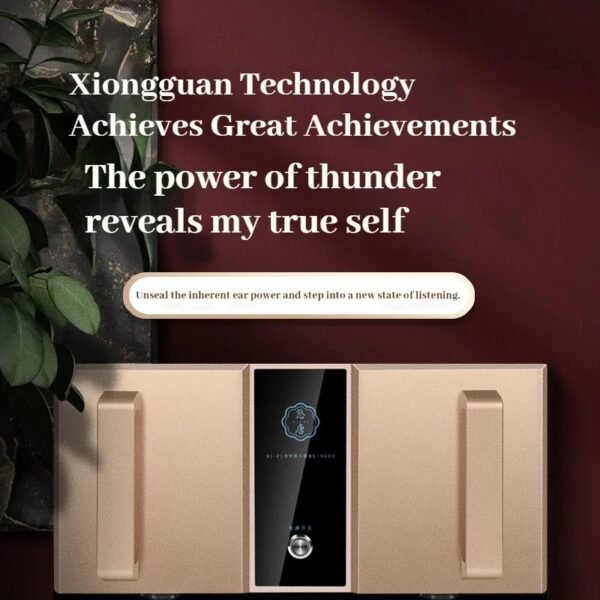

The MK-9600 is a separate Class A power amplifier with balanced and RCA input specifications. Designed for use with suitable upstream signal and volume control, it requires a supporting shelf and ventilation space appropriate for its 31kg net weight and specified idle consumption.
DESIGN & CONTROL
Built for its role.
Matched to your system.
- Balanced input impedance: 40k ohms; RCA input impedance: 20k ohms.
- Gain: 25dB.
- Specified load range: 2-16 ohms. Confirm compatibility with your speakers.
- Specified static power consumption: 300W. Keep airflow clear around the amplifier.

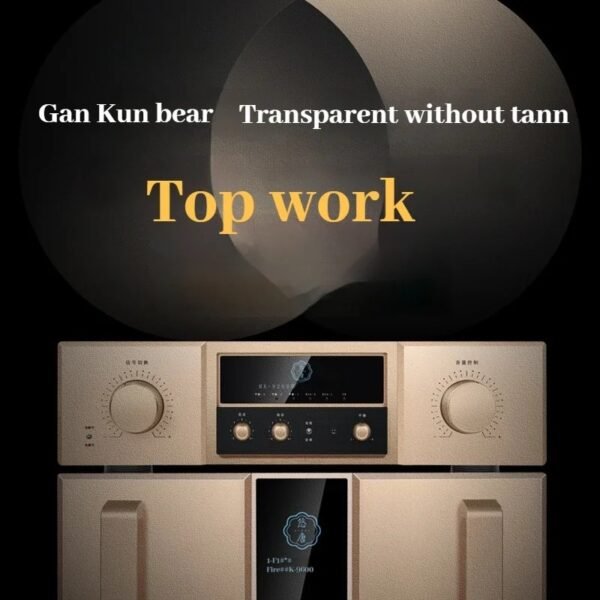

- Use a compatible preamplifier or volume-controlled source upstream.
PRODUCT VIEWS & PLACEMENT
The details.
From every angle.

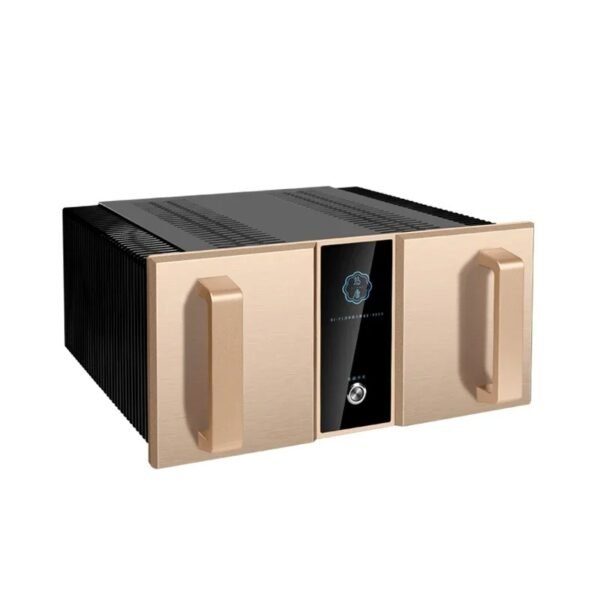

- Dimensions: 430mm W x 420mm D x 220mm H, excluding the front handle
- Net weight: 31kg
- Packed dimensions: 620mm W x 600mm D x 370mm H
Plan connection access and ventilation before installation.

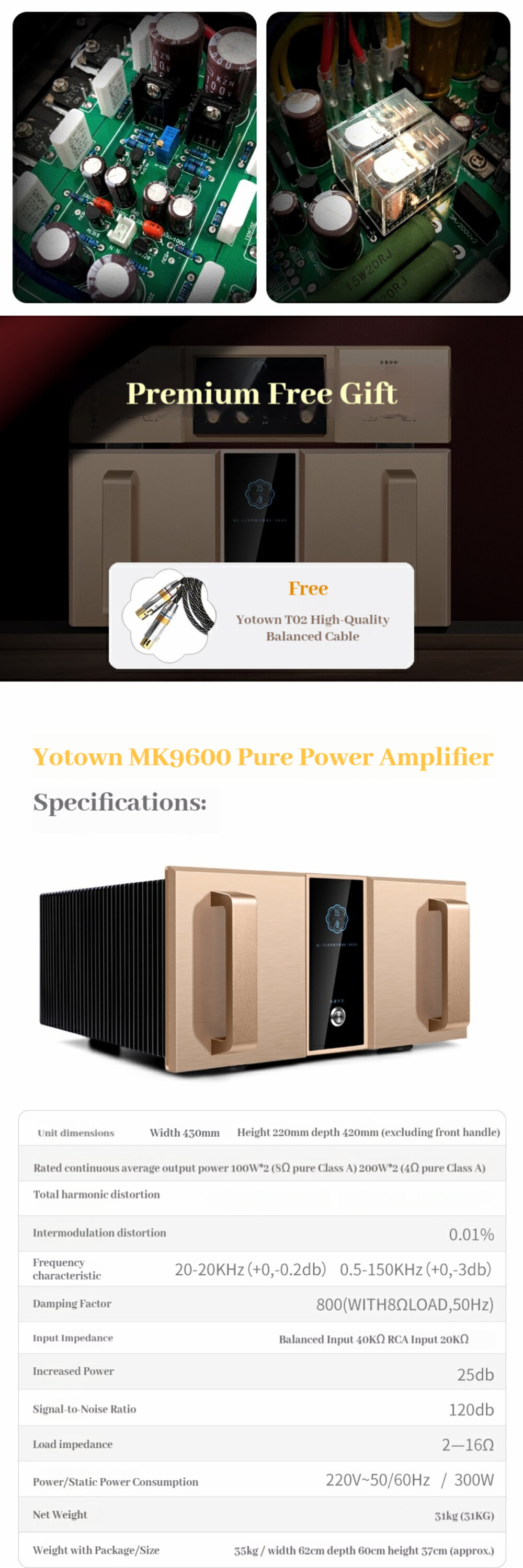

TECHNICAL DETAILS
Know the details.
Choose with confidence.

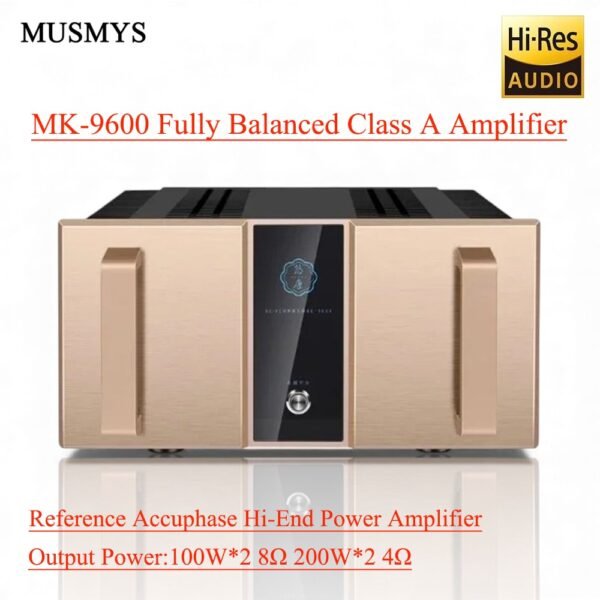

| Rated continuous output | 100W x 2 into 8 ohms; 200W x 2 into 4 ohms, specified as Class A output |
|---|---|
| Total harmonic distortion | 0.02% into 4-16 ohms; 0.05% into 2 ohms |
| Intermodulation distortion | 0.01% |
| Frequency response | 20Hz-20kHz, +0/-0.2dB; 0.5Hz-150kHz, +0/-3dB |
| Signal-to-noise ratio | 120dB |
| Damping factor | 800 at 8 ohms, 50Hz |
| Dimensions | 430mm W x 420mm D x 220mm H, excluding the front handle |
| Net weight | 31kg |
| Packed dimensions | 620mm W x 600mm D x 370mm H |
DELIVERY & AFTERCARE
A considered journey.
From us to your system.
- Choose the correct mains-voltage version and confirm local voltage and frequency before ordering.
- International orders may be subject to import duties, customs-clearance charges and local taxes. These charges are the buyer's responsibility.
- Provide an accurate delivery address and monitor order emails in case the carrier needs additional information.
- A power cord is not included.
Questions about system matching, voltage selection or shipping? Contact MUSMYS support before placing your order. Read our Hi-Fi Amplifier FAQ for system preparation.
ORIGINAL PRODUCT MATERIALS

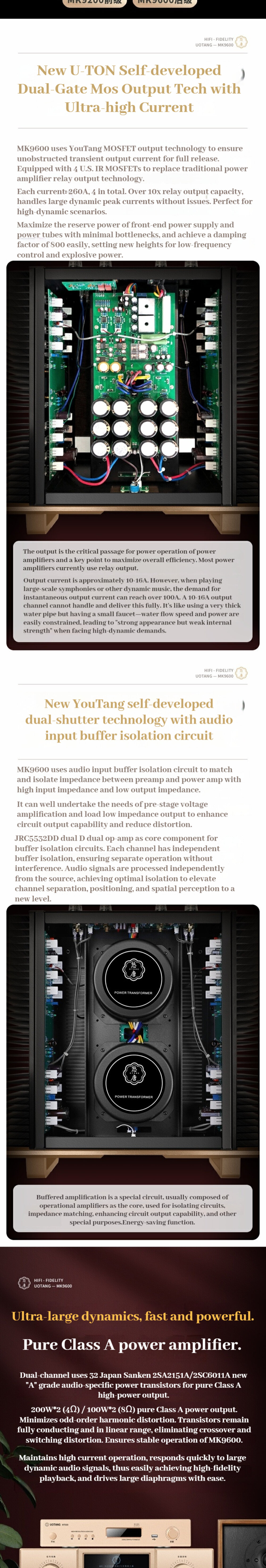

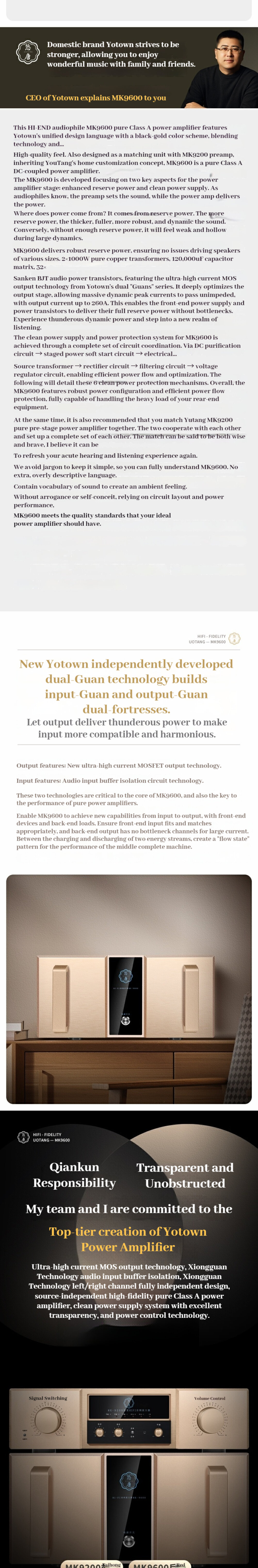

Explore the complete product guide.
Open each part for original photographs, construction details and dimensional information.

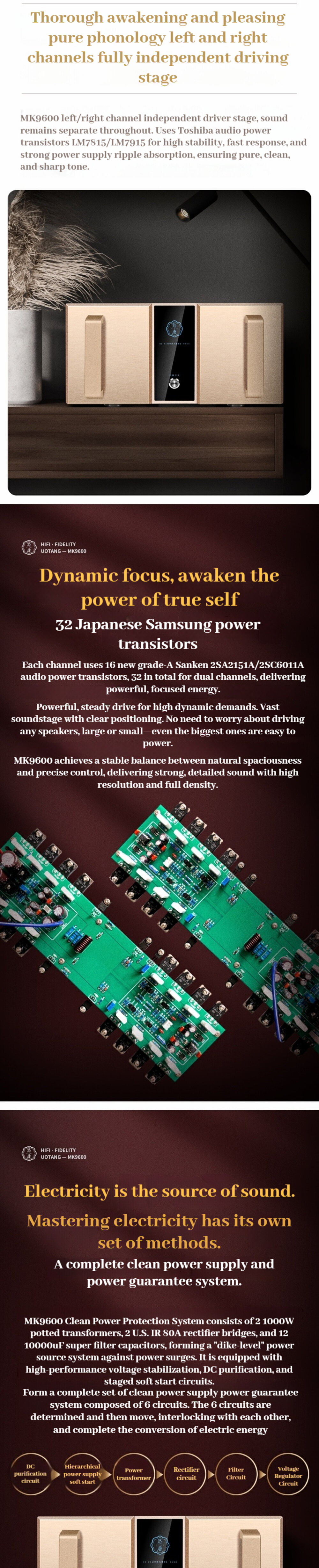

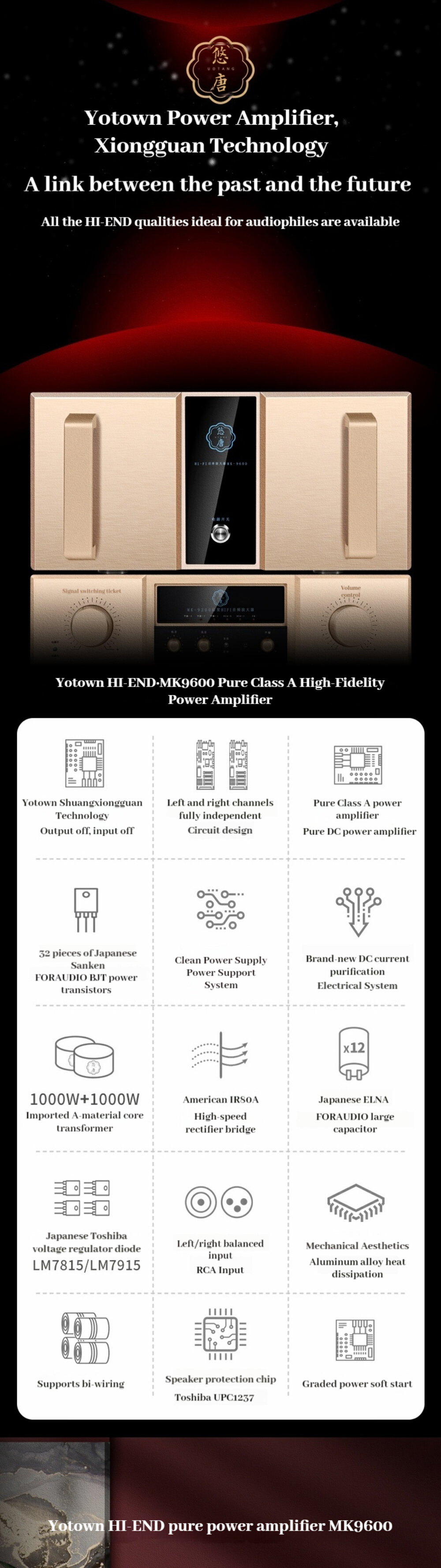

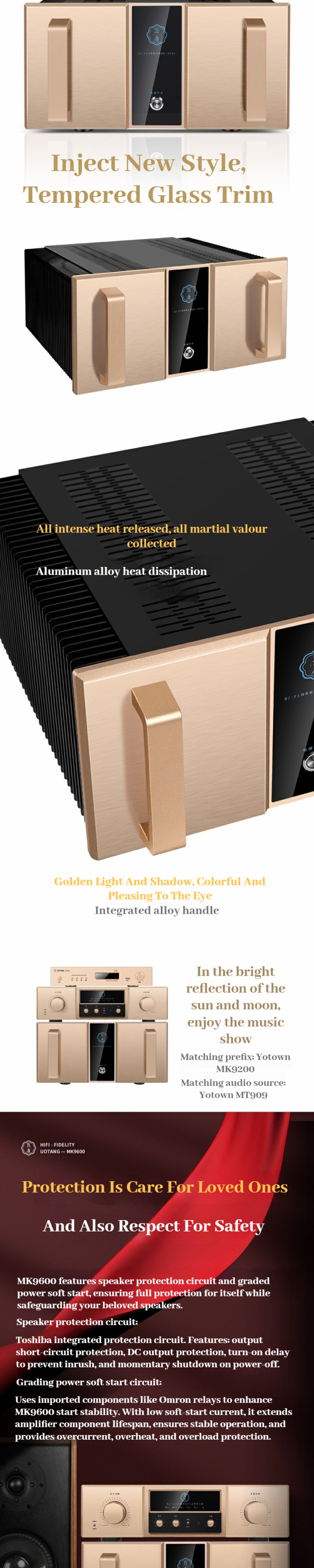

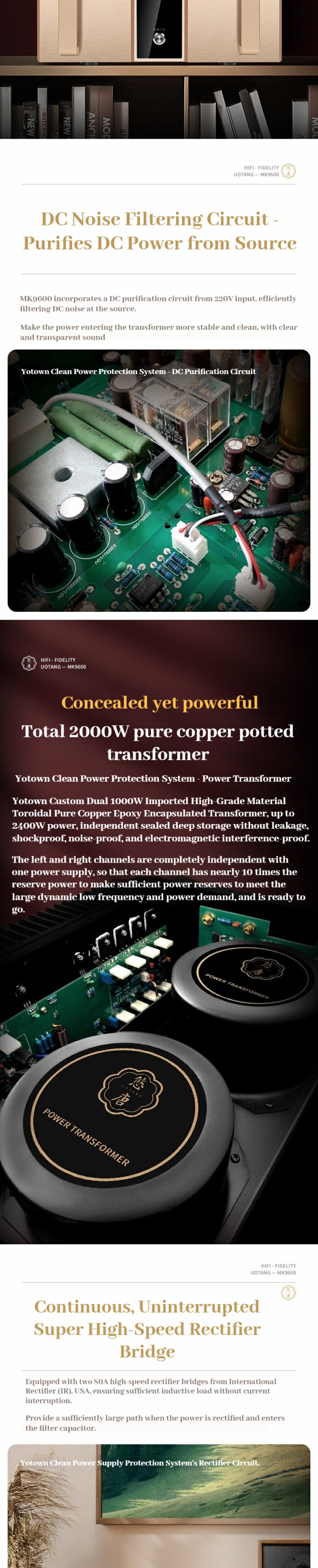

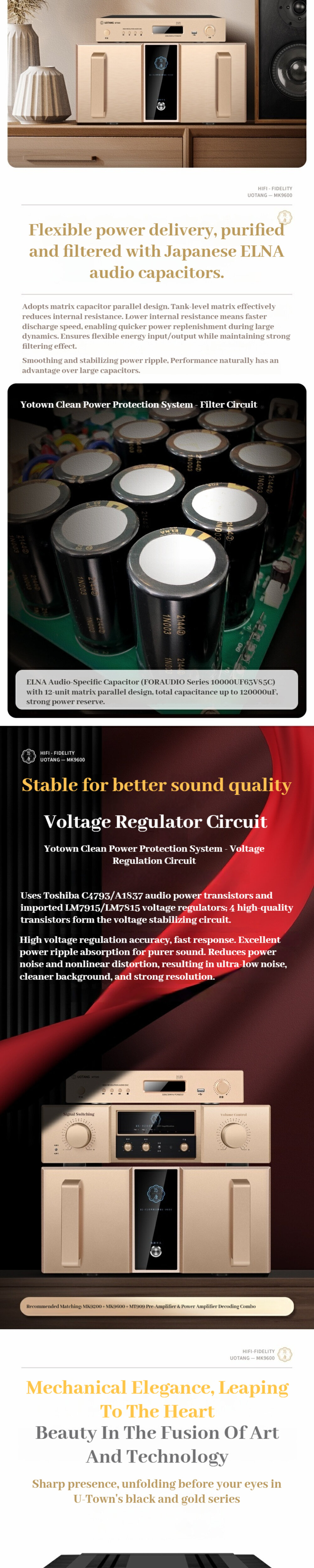

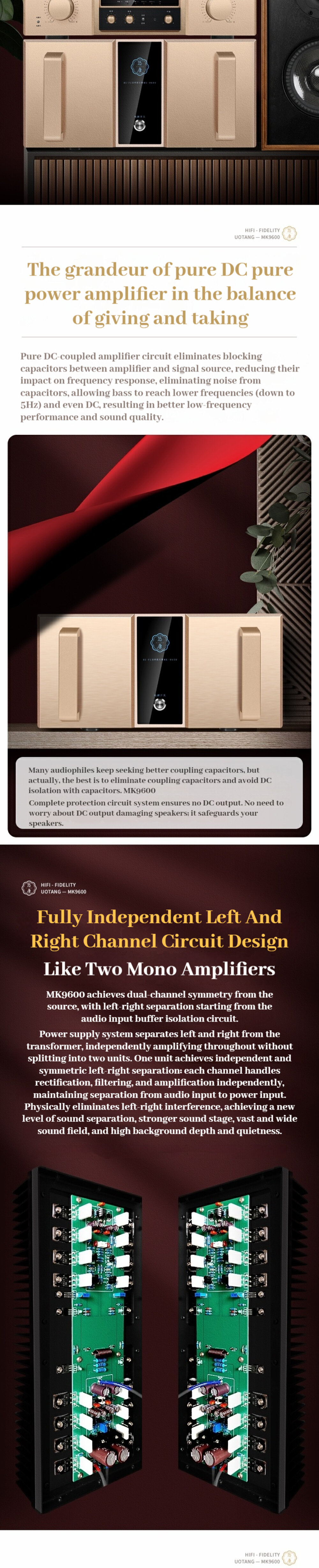

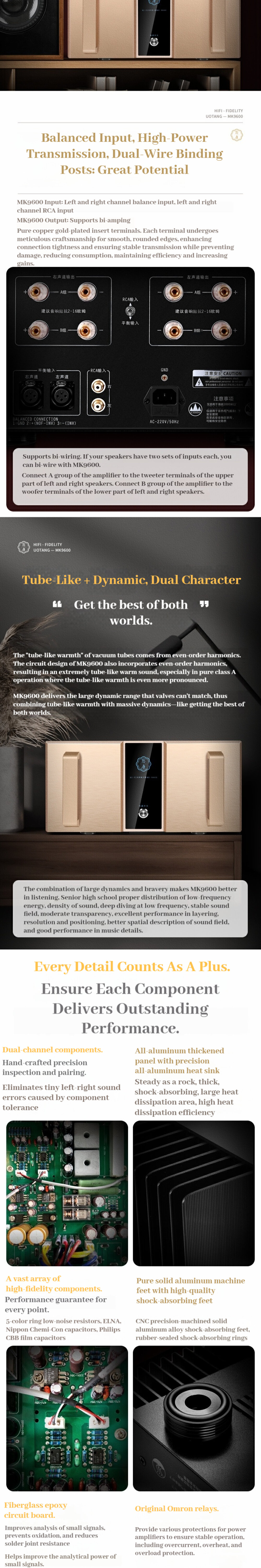

MK-9600 · Product guide 01 +
MK-9600 · Product guide 02 +
MK-9600 · Product guide 03 +
MK-9600 · Product guide 04 +
MK-9600 · Product guide 05 +
MK-9600 · Product guide 06 +
MK-9600 · Product guide 07 +
MK-9600 · Product guide 08 +
MK-9600 · Product guide 09 +
MK-9600 · Product guide 10 +
MK-9600 · Product guide 11 +
Ready for your next component?
Talk to MUSMYS about system matching, mains requirements and delivery.
