MUSMYS / P-1000
Source control and power.
One considered component.

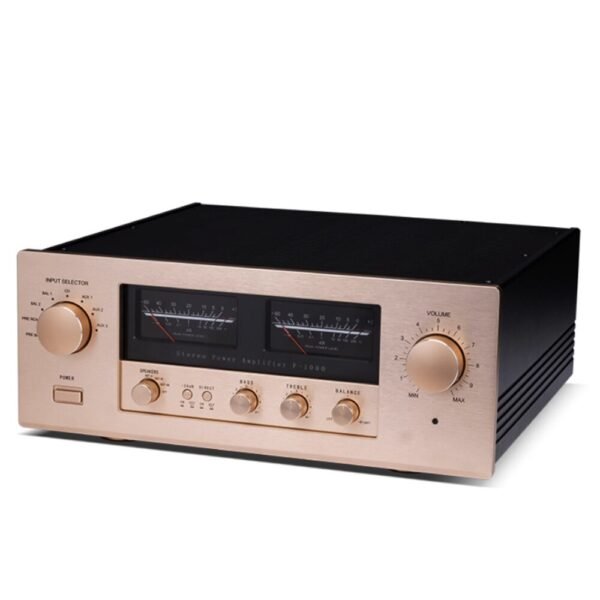

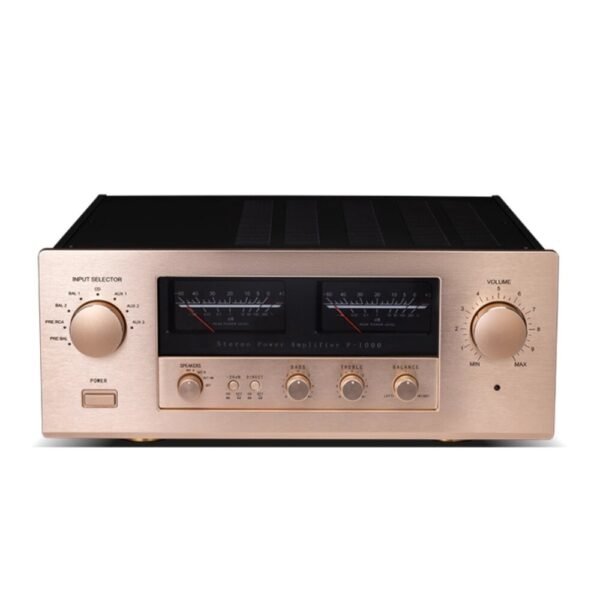

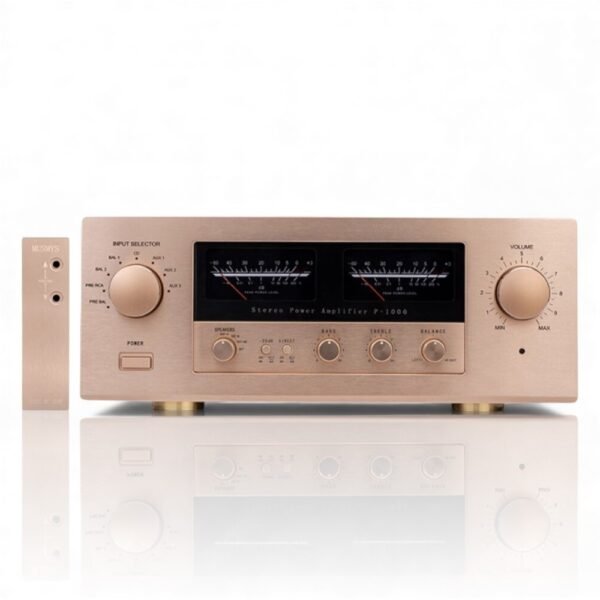

The P-1000 combines analog signal control and Class AB speaker amplification in one component. Balanced and RCA input specifications and adjustable bass and treble controls support a two-channel setup with compatible sources and passive speakers.
DESIGN & CONTROL
Built for its role.
Matched to your system.

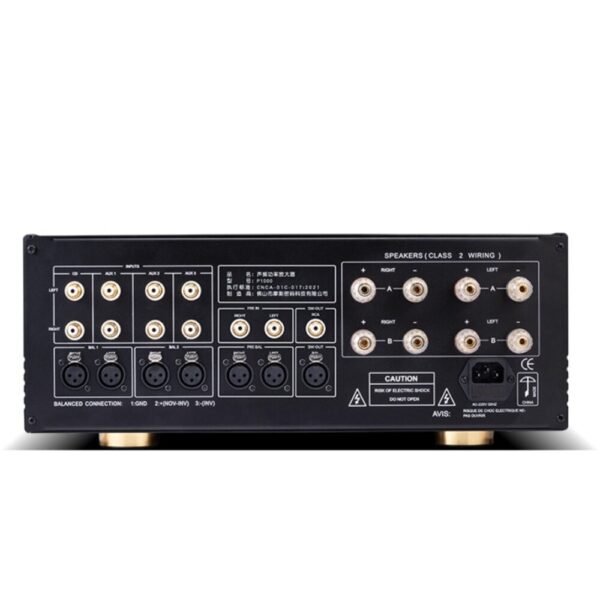

- Balanced input impedance: 47k ohms; RCA input impedance: 24k ohms.
- Input sensitivity: 0.87V at rated output; 0.11V at 1W.
- Bass and treble controls: +/-10dB, adjustable as specified.
- Integrated operation combines preamplification and speaker amplification.
- Confirm the required voltage version and local mains frequency before ordering.
THE SIGNAL PATH
The right component.
In the right place.
The P-1000 combines analog signal control and Class AB speaker amplification in one component. Balanced and RCA input specifications and adjustable bass and treble controls support a two-channel setup with compatible sources and passive speakers.
DIMENSIONS & PLACEMENT
Give your system room.

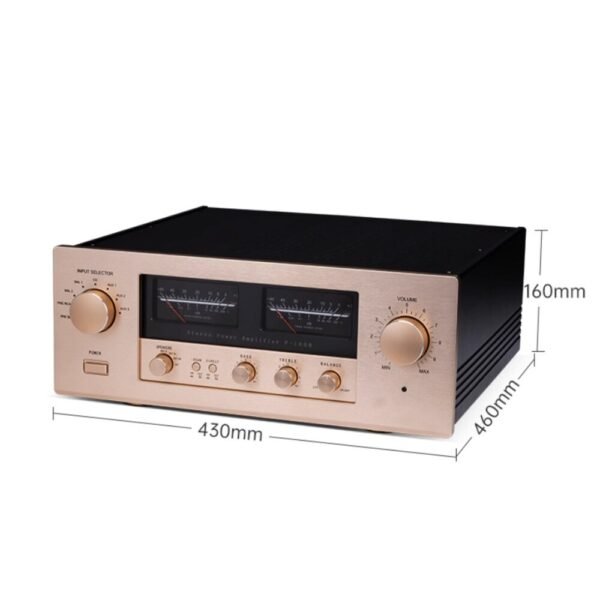

- Dimensions: 430mm W x 460mm D x 160mm H
- Net weight: 23.5kg
Use a stable support with sufficient load capacity and leave clearance for connections and ventilation.

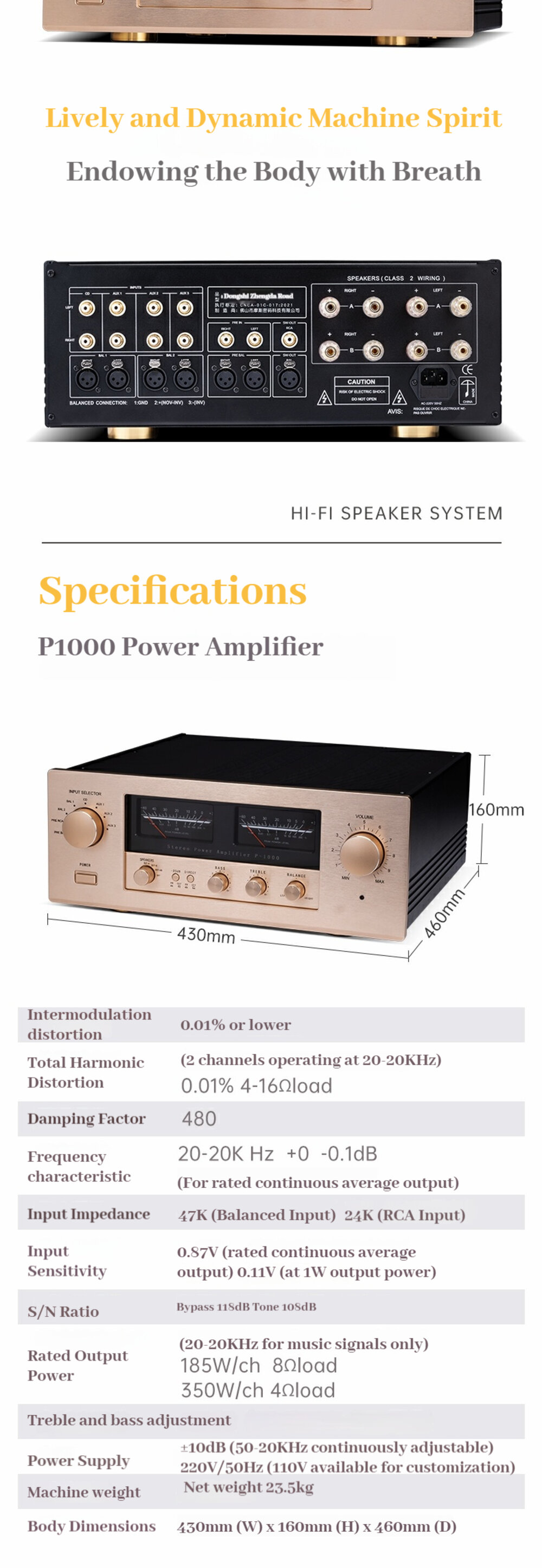

TECHNICAL DETAILS
Know the details.
Choose with confidence.
Specifications for P-1000. Review system matching, operating mode and mains requirements before connection.

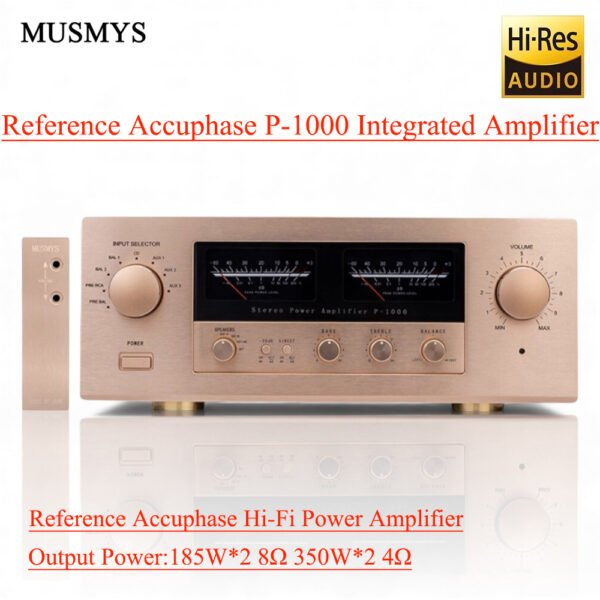

| Output power | 185W per channel into 8 ohms; 350W per channel into 4 ohms, specified for 20Hz-20kHz music signals |
|---|---|
| Total harmonic distortion | 0.01%, both channels at 20Hz-20kHz into 4-16 ohms |
| Intermodulation distortion | 0.01% or less |
| Frequency response | 20Hz-20kHz, +0/-0.1dB at rated output |
| Signal-to-noise ratio | 118dB direct signal; 108dB audio signal |
| Damping factor | 480 |
| Dimensions | 430mm W x 460mm D x 160mm H |
| Net weight | 23.5kg |
INDEPENDENT PRODUCT VIDEO
See P-1000 in action.
Watch the independent product video on YouTube and form your own impression.
Play the P-1000 review
DELIVERY & AFTERCARE
A considered journey.
From us to your system.
Contact MUSMYS to confirm packaging, destination, freight charges and handling requirements.
- Choose the correct mains-voltage version and confirm local voltage and frequency before ordering.
- International orders may be subject to import duties, customs-clearance charges and local taxes. These charges are the buyer's responsibility.
- Provide an accurate delivery address and monitor order emails in case the carrier needs additional information.
- A power cord is not included.
Questions about system matching, voltage selection or shipping? Contact MUSMYS support before placing your order. Read our Hi-Fi Amplifier FAQ for system preparation.
