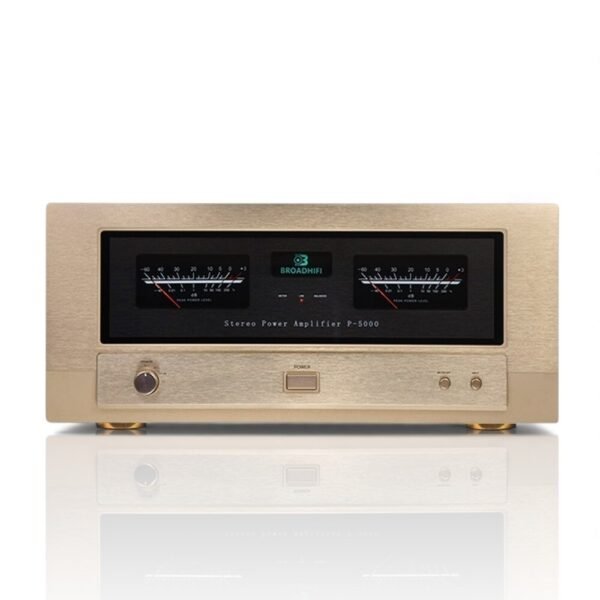

MUSMYS / P-5000
Class A at the start.
Class AB power in reserve.

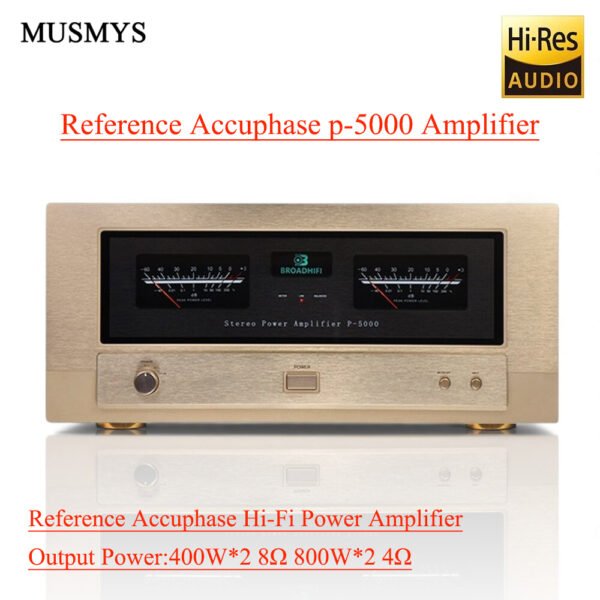

The P-5000 is a separate Class AB power amplifier for a system with a suitable preamplifier or compatible volume-controlled source. It offers balanced and RCA input specifications and selectable speaker output groups for planning a component-based stereo setup.
DESIGN & CONTROL
Built for its role.
Matched to your system.

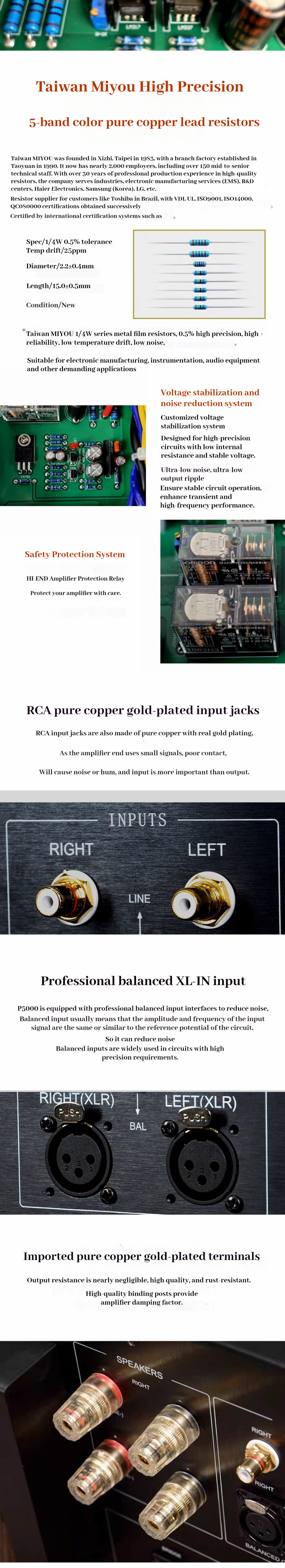

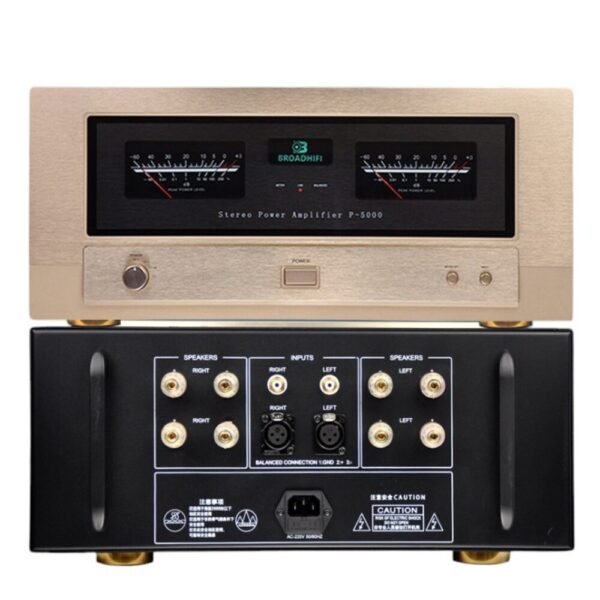

- Balanced input impedance: 40k ohms; RCA input impedance: 20k ohms.
- Speaker output selection: Group A, Group B or Group A+B.
- Specified load range: 2-16 ohms. Confirm the combined load before using multiple output groups.
- Specified static power consumption: 50-400W. Allow ventilation around the amplifier.
- Use suitable upstream signal and volume control before connecting passive speakers.
UNDERSTAND THE OPERATING RANGE
80W in Class A.
400W of rated output.
The first 80W per channel into 8Ω, or 160W per channel into 4Ω, operates in pure Class A. Higher output enters Class AB. Rated output is 400W per channel into 8Ω and 800W per channel into 4Ω, as confirmed by MUSMYS.
THE SIGNAL PATH
The right component.
In the right place.
The P-5000 is a separate Class AB power amplifier for a system with a suitable preamplifier or compatible volume-controlled source. It offers balanced and RCA input specifications and selectable speaker output groups for planning a component-based stereo setup.
DIMENSIONS & PLACEMENT
Give your system room.

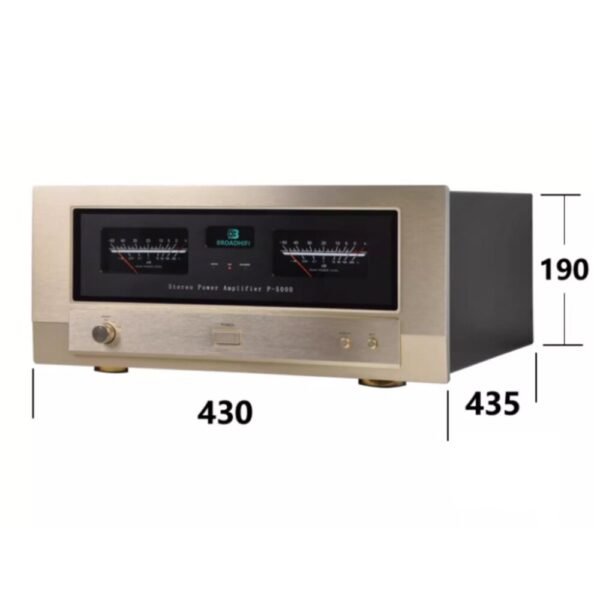

- Dimensions: 430mm W x 435mm D x 190mm H
- Net weight: 25kg
Use a stable support with sufficient load capacity and leave clearance for connections and ventilation.
TECHNICAL DETAILS
Know the details.
Choose with confidence.

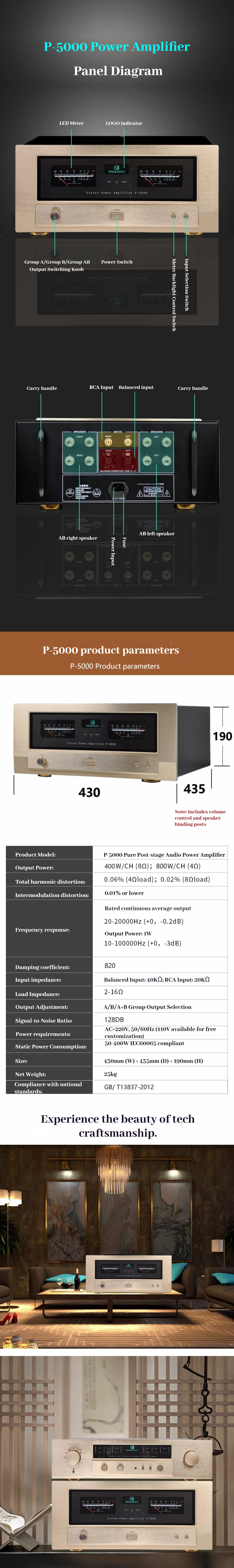

Specifications for P-5000. Review system matching, operating mode and mains requirements before connection.
| Output power | 400W per channel into 8 ohms; 800W per channel into 4 ohms |
|---|---|
| Total harmonic distortion | 0.02% into 8 ohms; 0.06% into 4 ohms |
| Intermodulation distortion | 0.01% or less |
| Frequency response | 20Hz-20kHz, +0/-0.2dB at rated output; 10Hz-100kHz, +0/-3dB at 1W |
| Signal-to-noise ratio | 128dB |
| Damping factor | 820 |
| Dimensions | 430mm W x 435mm D x 190mm H |
| Net weight | 25kg |
| Pure Class A range / per channel | First 80W into 8Ω / 160W into 4Ω; higher output enters Class AB |
DELIVERY & AFTERCARE
A considered journey.
From us to your system.
Contact MUSMYS to confirm packaging, destination, freight charges and handling requirements.
- Choose the correct mains-voltage version and confirm local voltage and frequency before ordering.
- International orders may be subject to import duties, customs-clearance charges and local taxes. These charges are the buyer's responsibility.
- Provide an accurate delivery address and monitor order emails in case the carrier needs additional information.
- A power cord is not included.
Questions about system matching, voltage selection or shipping? Contact MUSMYS support before placing your order. Read our Hi-Fi Amplifier FAQ for system preparation.
