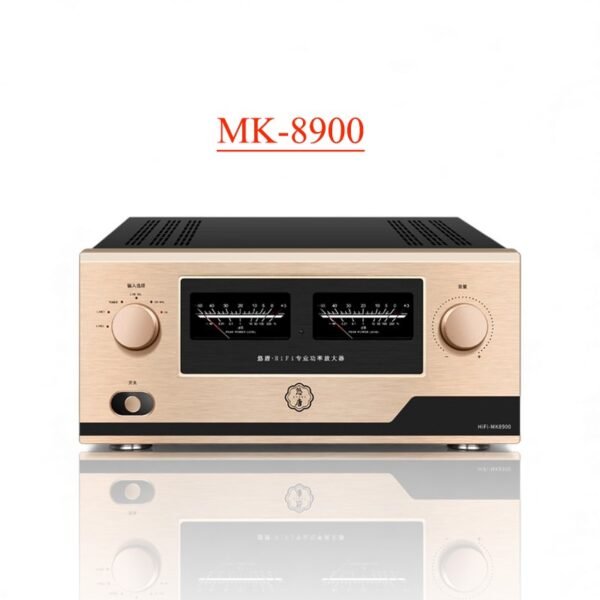

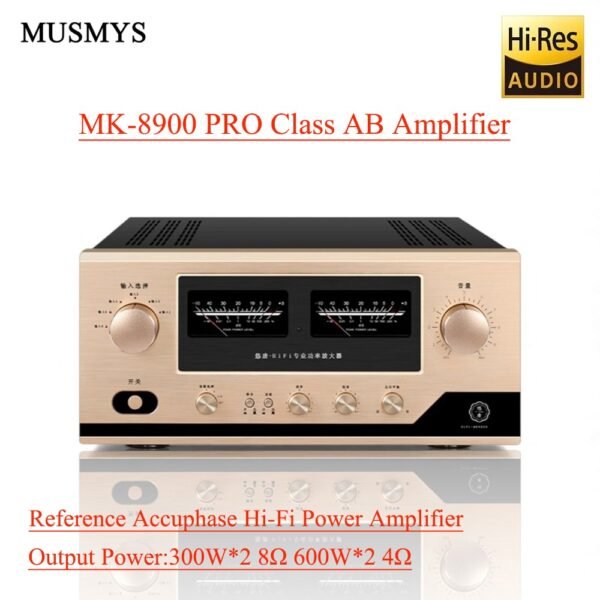

MUSMYS / MK-8900
Control and power.
At the heart of your system.
The MK-8900 combines analog signal control and Class AB speaker amplification for a two-channel system. Balanced and RCA input specifications support matching with compatible sources. Confirm the exact model/version selected, its included functions and mains voltage before ordering.
DESIGN & CONTROL
Built for its role.
Matched to your system.
- Balanced input impedance: 40k ohms; RCA input impedance: 20k ohms.
- Specified gain: 40dB.
- Specified load range: 2-16 ohms. Check speaker requirements before use.
- Specified static power consumption: 50-250W.

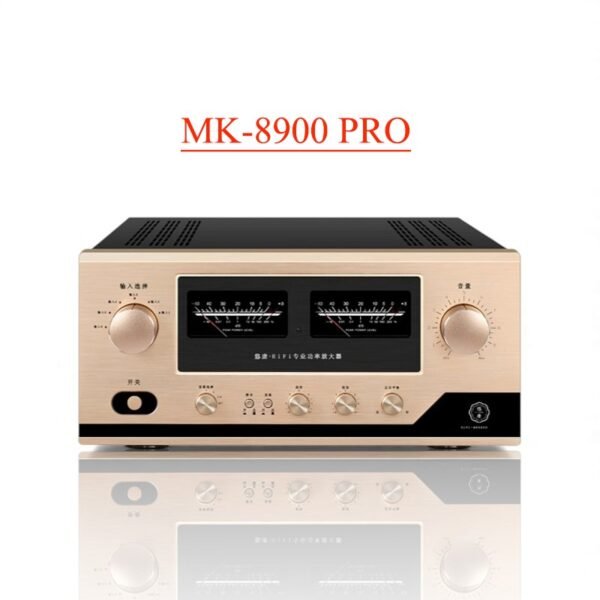

- The specifications above describe the MK-8900. Contact MUSMYS to confirm any PRO-version differences before choosing a model option.

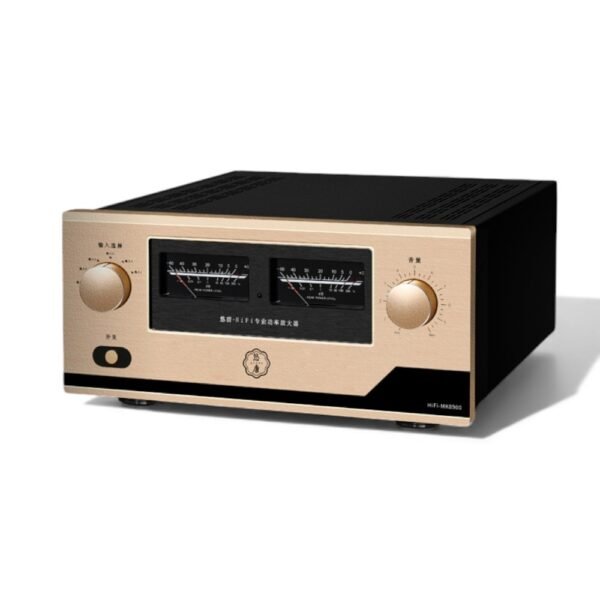

PRODUCT VIEWS & PLACEMENT
The details.
From every angle.
- Overall dimensions: 420mm W x 450mm D x 200mm H
- Total weight: 32kg, as specified for the MK-8900
Plan connection access and ventilation before installation.
TECHNICAL DETAILS
Know the details.
Choose with confidence.

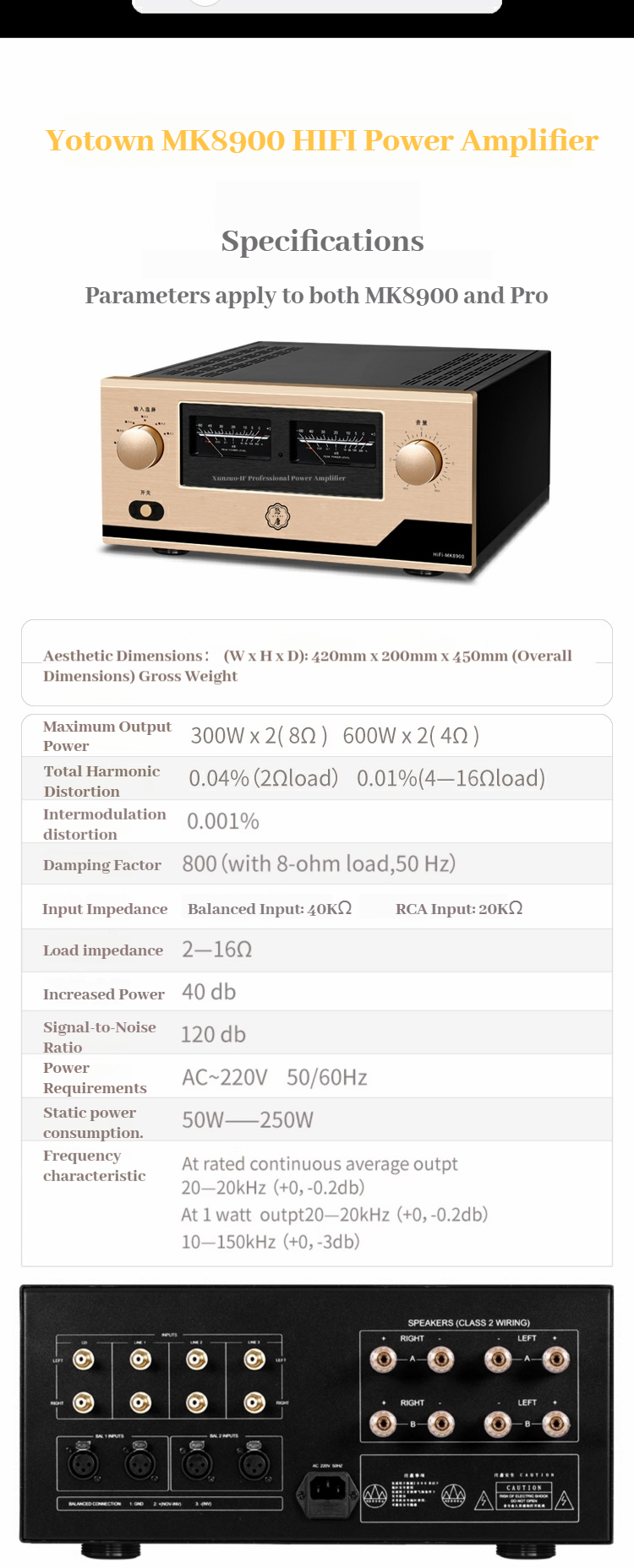

| Output power | 300W x 2 into 8 ohms; 600W x 2 into 4 ohms, as specified for the MK-8900 |
|---|---|
| Total harmonic distortion | 0.01% into 4-16 ohms; 0.04% into 2 ohms |
| Intermodulation distortion | 0.001% |
| Signal-to-noise ratio | 120dB |
| Frequency response | 20Hz-20kHz, +0/-0.2dB; extended response 10Hz-150kHz, +0/-3dB |
| Damping factor | 800 at 8 ohms, 50Hz |
| Overall dimensions | 420mm W x 450mm D x 200mm H |
| Total weight | 32kg, as specified for the MK-8900 |
DELIVERY & AFTERCARE
A considered journey.
From us to your system.
- Choose the correct mains-voltage version and confirm local voltage and frequency before ordering.
- International orders may be subject to import duties, customs-clearance charges and local taxes. These charges are the buyer's responsibility.
- Provide an accurate delivery address and monitor order emails in case the carrier needs additional information.
- A power cord is not included.
Questions about system matching, voltage selection or shipping? Contact MUSMYS support before placing your order. Read our Hi-Fi Amplifier FAQ for system preparation.
ORIGINAL PRODUCT MATERIALS
Explore the complete product guide.
Open each part for original photographs, construction details and dimensional information.
MK-8900 · Product guide 01 +
MK-8900 · Product guide 02 +
MK-8900 · Product guide 03 +
MK-8900 · Product guide 04 +
MK-8900 · Product guide 05 +
MK-8900 · Product guide 06 +
MK-8900 · Product guide 07 +
MK-8900 · Product guide 08 +
MK-8900 · Product guide 09 +
Ready for your next component?
Talk to MUSMYS about system matching, mains requirements and delivery.
