MUSMYS / MK-9200
A balanced beginning.
Control for your system.
The MK-9200 is a Class A preamplifier for a separate-component stereo system. It provides balanced and RCA input specifications and a specified maximum output level of 12V. A compatible power amplifier is required to drive passive speakers; balanced operation also requires a suitable balanced input downstream.
DESIGN & CONTROL
Built for its role.
Matched to your system.
- Balanced input sensitivity / impedance: 250mV / 40k ohms.
- RCA input sensitivity / impedance: 250mV / 20k ohms.
- Minimum load impedance: 600 ohms.
- The preamplifier cannot be connected directly to passive speakers to drive them.
- Confirm the balanced-input requirements of your power amplifier when planning a balanced signal path.
PRODUCT VIEWS & PLACEMENT
The details.
From every angle.
- Dimensions: 430mm W x 330mm D x 108mm H, excluding feet
- Weight: 7.5kg, as stated in the product specifications
Plan connection access and ventilation before installation.

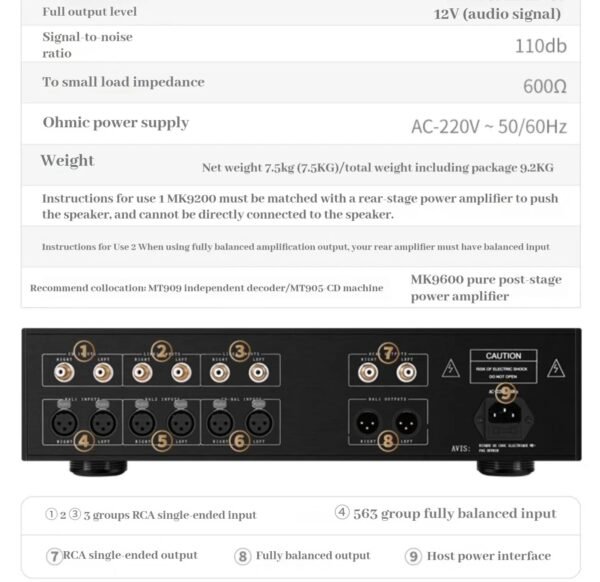

TECHNICAL DETAILS
Know the details.
Choose with confidence.
| Frequency response | 20Hz-20kHz, +0/-0.1dB; 3Hz-150kHz, +0/-3dB |
|---|---|
| Total harmonic distortion | 0.002% |
| Signal-to-noise ratio | 110dB |
| Rated input level | 2V |
| Rated output level | 2V / 50 ohms |
| Maximum output level | 12V |
| Dimensions | 430mm W x 330mm D x 108mm H, excluding feet |
| Weight | 7.5kg, as stated in the product specifications |
DELIVERY & AFTERCARE
A considered journey.
From us to your system.
- Choose the correct mains-voltage version and confirm local voltage and frequency before ordering.
- International orders may be subject to import duties, customs-clearance charges and local taxes. These charges are the buyer's responsibility.
- Provide an accurate delivery address and monitor order emails in case the carrier needs additional information.
- A power cord is not included.
Questions about system matching, voltage selection or shipping? Contact MUSMYS support before placing your order. Read our Hi-Fi Amplifier FAQ for system preparation.
