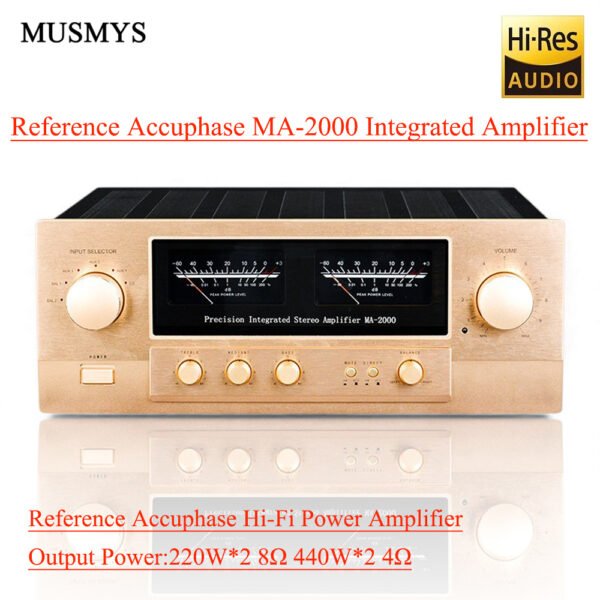

MUSMYS / MA-2000
Bring your system together.
Make the music your own.
The MA-2000 combines preamplification and speaker amplification in one Class AB component. It provides balanced and RCA input specifications plus adjustable bass and treble controls for a source-and-speaker stereo setup.
220W × 28Ω / music signal specification
125dBSignal-to-noise ratio / direct
18kgWeight
Class ABAmplification & control
DESIGN & CONTROL
Built for its role.
Matched to your system.

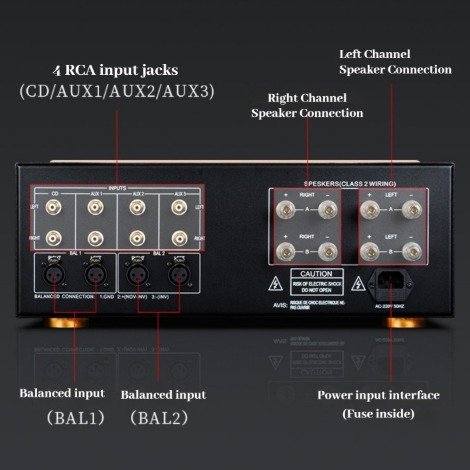

- Balanced input impedance: 40k ohms; RCA input impedance: 20k ohms.
- Input sensitivity: 0.87V at rated output; 0.11V at 1W.

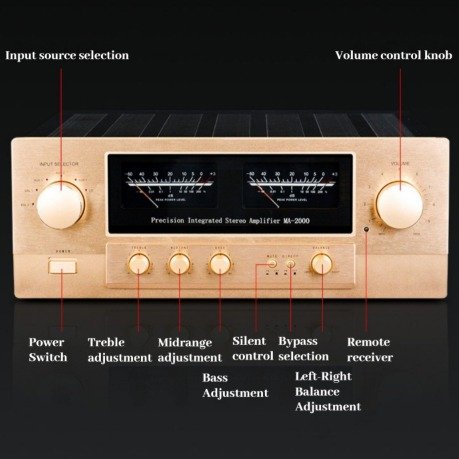

- Bass and treble control: +/-10dB, continuously adjustable as specified.
- Preamplifier gain: 6x; power-amplifier gain: 28x.
- Integrated operation combines signal control and speaker amplification without requiring a separate preamplifier.
Source→MA-2000→Passive speakers

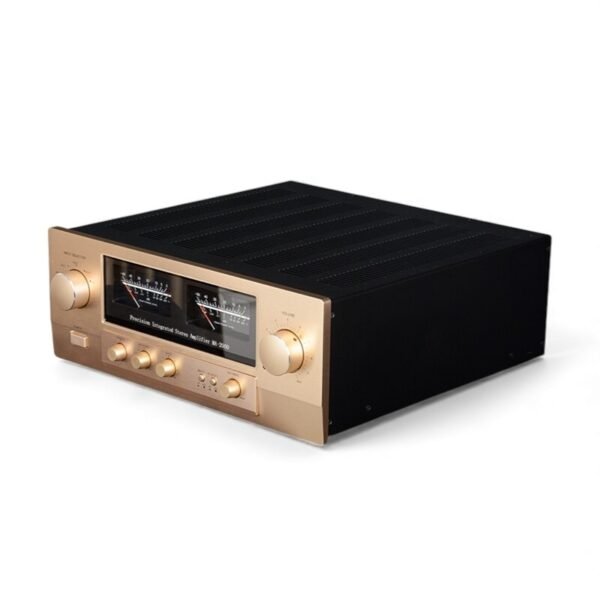

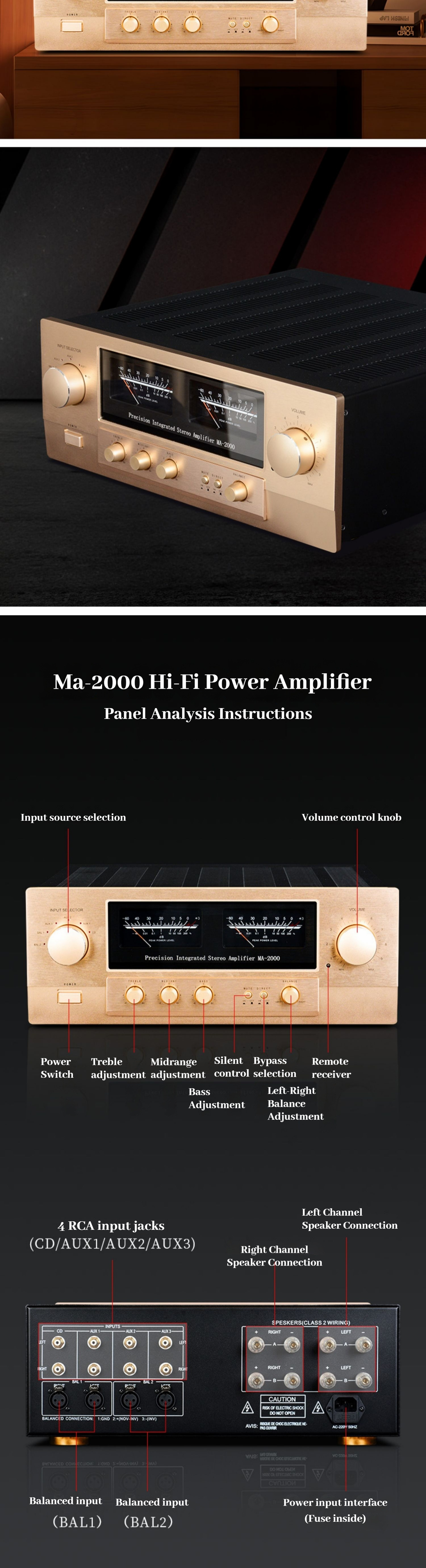

PRODUCT VIEWS & PLACEMENT
The details.
From every angle.
- Dimensions: 430 x 460 x 162mm, including knobs and terminals
- Net weight: 18kg
Plan connection access and ventilation before installation.
TECHNICAL DETAILS
Know the details.
Choose with confidence.
| Output power | 220W per channel into 8 ohms; 380W per channel into 4 ohms; the original specification limits these figures to music signals at 20Hz-20kHz |
|---|---|
| Total harmonic distortion | 0.02% into 4-8 ohms, both channels at 20Hz-20kHz |
| Intermodulation distortion | 0.01% or less |
| Frequency response | 20Hz-20kHz, +0/-0.2dB at rated output; 3Hz-150kHz, +0/-3dB at 1W |
| Signal-to-noise ratio | 125dB direct; 118dB with tone control |
| Damping factor | 480 at 8 ohms, 50Hz |
| Dimensions | 430 x 460 x 162mm, including knobs and terminals |
| Net weight | 18kg |
DELIVERY & AFTERCARE
A considered journey.
From us to your system.
- Choose the correct mains-voltage version and confirm local voltage and frequency before ordering.
- International orders may be subject to import duties, customs-clearance charges and local taxes. These charges are the buyer's responsibility.
- Provide an accurate delivery address and monitor order emails in case the carrier needs additional information.
- A power cord is not included.
Questions about system matching, voltage selection or shipping? Contact MUSMYS support before placing your order. Read our Hi-Fi Amplifier FAQ for system preparation.
ORIGINAL PRODUCT MATERIALS
Explore the complete product guide.

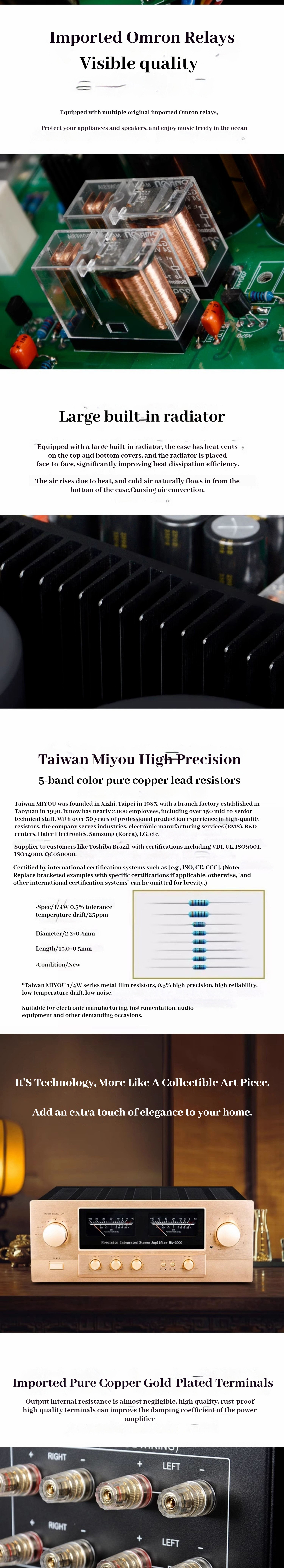

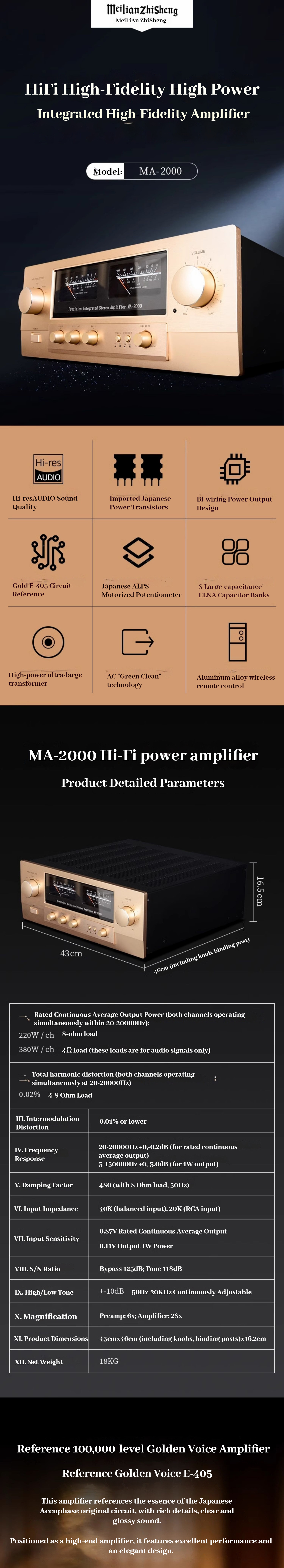

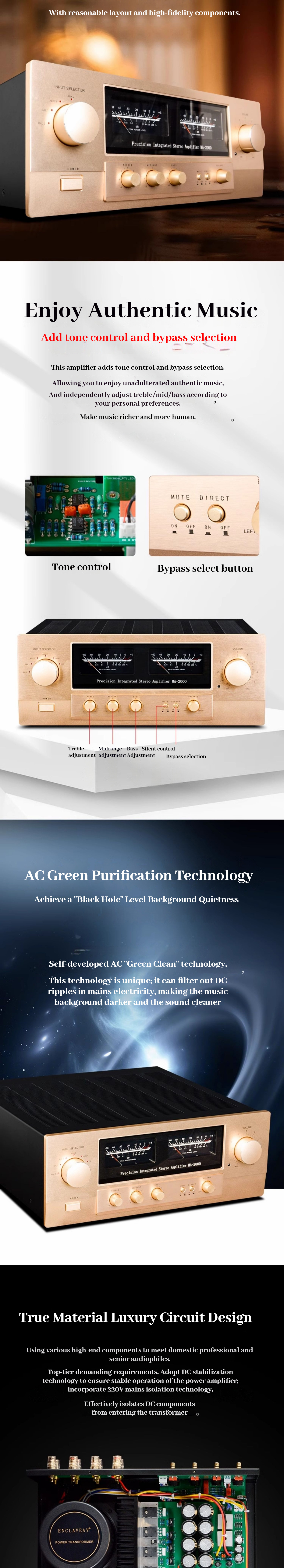

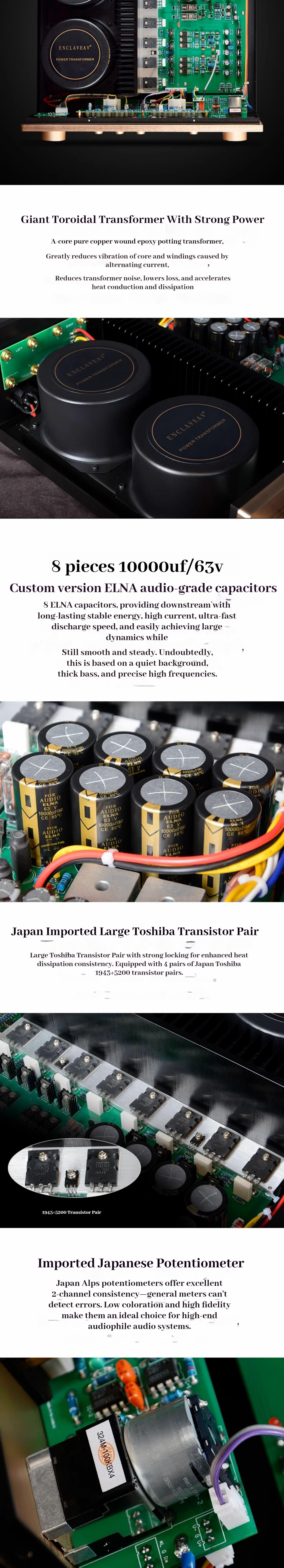

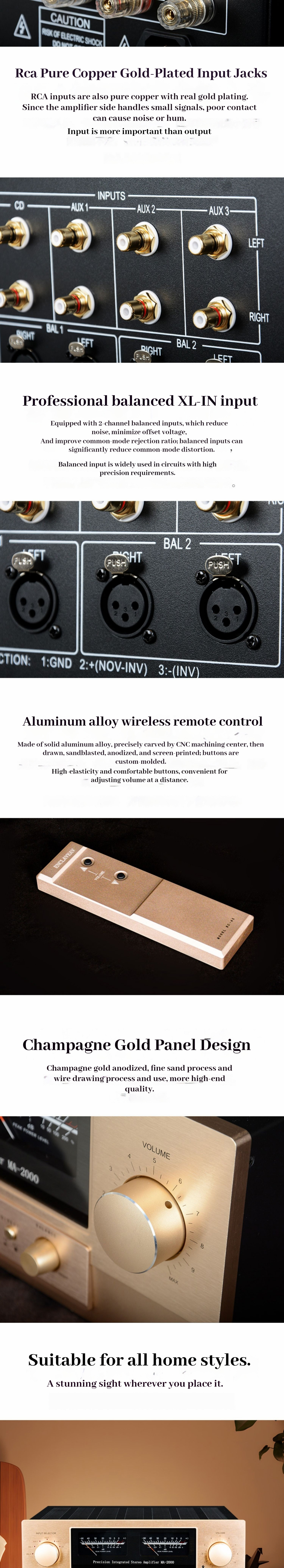

Open each part for original photographs, construction details and dimensional information.
MA-2000 · Product guide 01 +
MA-2000 · Product guide 02 +
MA-2000 · Product guide 03 +
MA-2000 · Product guide 04 +
MA-2000 · Product guide 05 +
MA-2000 · Product guide 06 +
Ready for your next component?
Talk to MUSMYS about system matching, mains requirements and delivery.
