MUSMYS-MK8600 Pro Class AB Amplifier 250W*2

CLASS AB AMPLIFIER

The MK-8600 PRO combines Class AB amplification with bass and treble adjustment in a compact 340mm-wide enclosure. Its specifications include preamplifier and power-amplifier gain stages. Confirm the input connections and control functions needed for your source-and-speaker system before ordering.

250W × 28Ω rated output

118dBSignal-to-noise ratio

14kgWeight

Choose the correct mains-voltage version below. Confirm system matching and delivery before ordering.

Ask about delivery ↗ · Warranty & returns

Voltage

Clear

MUSMYS / MK-8600 PRO

A compact form.
Power for your listening space.

250W × 28Ω rated output

118dBSignal-to-noise ratio

14kgWeight

Class ABAmplification & control

DESIGN & CONTROL

Built for its role.
Matched to your system.

Preamplifier gain: 5x; power-amplifier gain: 36x.
Bass adjustment: 300Hz, +/-10dB at 50Hz.
Treble adjustment: 3kHz, +/-10dB at 20kHz.
Specified load range: 4-16 ohms.
Specified power consumption: 40-300W. Confirm mains voltage and provide suitable ventilation.

Source→MK-8600 PRO→Passive speakers

PRODUCT VIEWS & PLACEMENT

The details.
From every angle.

Dimensions: 340mm W x 350mm D x 145mm H, including terminals
Net weight: 14kg

Plan connection access and ventilation before installation.

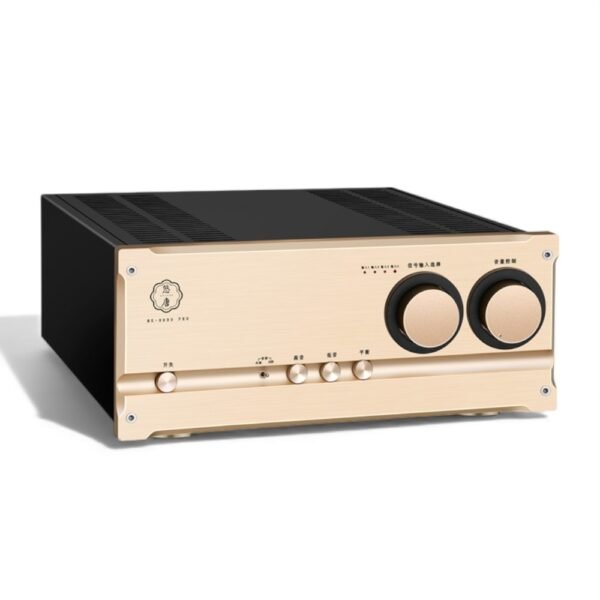

MK-8600 PRO original product view 1 — MUSMYS / MK-8600 PRO

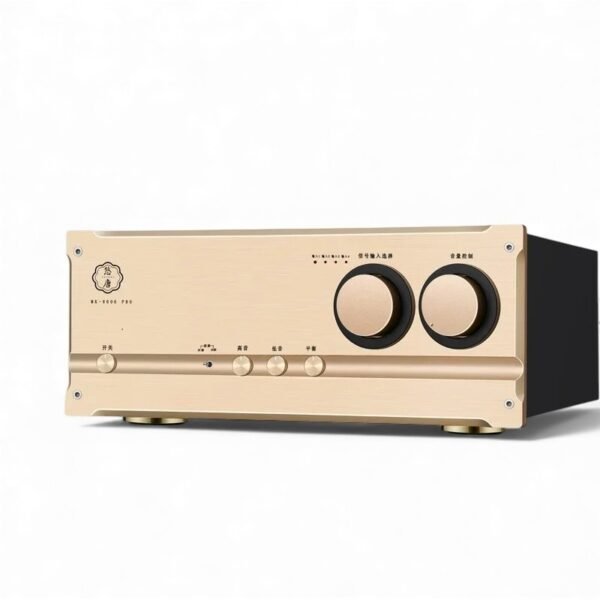

MK-8600 PRO original product view 2 — MUSMYS / MK-8600 PRO

MK-8600 PRO original product view 3 — MUSMYS / MK-8600 PRO

TECHNICAL DETAILS

Know the details.
Choose with confidence.

Rated output	250W + 250W into 8 ohms; 400W + 400W into 4 ohms
Total harmonic distortion	0.01% into 8 ohms; 0.03% into 4 ohms
Frequency response	20Hz-20kHz, +0/-0.1dB at rated output; 10Hz-100kHz, +1/-2dB at 1W
Signal-to-noise ratio	118dB
Damping factor	500
Input impedance	27k ohms
Dimensions	340mm W x 350mm D x 145mm H, including terminals
Net weight	14kg

DELIVERY & AFTERCARE

A considered journey.
From us to your system.

Choose the correct mains-voltage version and confirm local voltage and frequency before ordering.
International orders may be subject to import duties, customs-clearance charges and local taxes. These charges are the buyer's responsibility.
Provide an accurate delivery address and monitor order emails in case the carrier needs additional information.
A power cord is not included.

Questions about system matching, voltage selection or shipping? Contact MUSMYS support before placing your order. Read our Hi-Fi Amplifier FAQ for system preparation.

Discuss your system & delivery ↗

ORIGINAL PRODUCT MATERIALS
