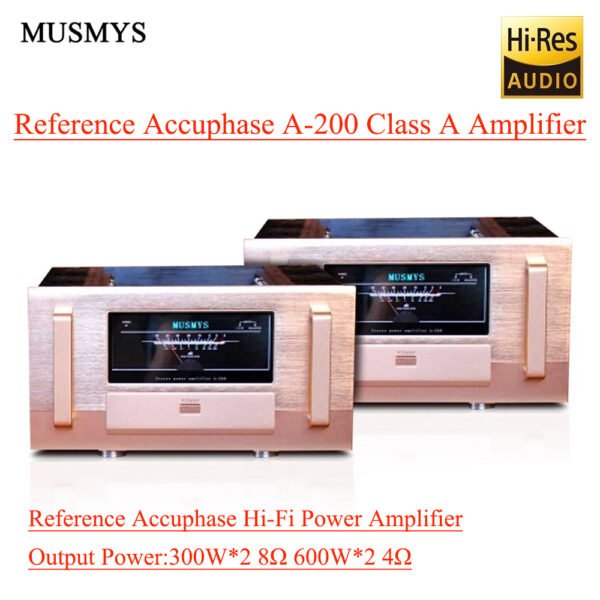

MUSMYS-Reference Accuphase A-200 Pure Class A Amplifier 300W*2

Model:A-200
Amplifier Type:Pure Class A Amplifier

1: Rated continuous average output power:
300W/CH 8Ω load (pure Class A)
600W/CH 4Ω load
1200W/CH 2Ω load
2: Total harmonic distortion 20-20,000 Hz:
0.05% 2Ω load
0.02% 4 to 16 Ω load
3: Intermodulation distortion: 0.01%
4: Frequency characteristics:
POWER IN (At rated continuous average output)
20 – 20,000 Hz +0, -0.2 db
POWER IN (At 1 watt output)
0.5 – 160,000 Hz +0, -3 db
5: Damping factor: 1000 (with 8Ω load,50 Hz)
6: Input Sensitivity, Input Impedance
Balanced input 40K Ω
RCA input 20K Ω
7: Gain power: 28 db
8: S/N Ratio, input-converted Noise: 120 db
9: Load impedance: 2-16 ohms
10: Power requirements: AC ~ 220V 50/60Hz
11: Static power consumption: 300 Watts idle
12: Maximum size: Width 430 mm Height 220 mm (excluding feet) Depth 520 mm
13: Net weight: 42KG per unit

Voltage

Clear

Welcome to the MUSMYS Hi-Fi Audio Factory direct sales store. Quality guaranteed, faster shipping!
In order to provide better shopping experience, let me clarify these informations to avoid unnecessary inconvinience:

1. All products in the store are not included: customs duties, customs clearance fees and tax. Without special requirements, we will declare them according to the price of the product.

2. We hope that you can understand the relevant taxation policies of your local customs. We do not accept your refusal for goods due to customs taxation issues; (in some countries, the platform has the option of pre-collecting tariffs).

3. In order not to affect your receipt of the goods, after purchasing the goods, please pay more attention to information such as emails, platform messages, etc. If there is any information about the unclear address or the logistics policy changes, we will notify you as soon as possible, and look forward to you reply.

4. No power cord is included with any of the machines.

Technical parameters: A-200 Guaranteed Specifications
(Based on EIA RS490 test standard)
1: Rated continuous average output power:
300W/CH 8Ω load (pure Class A)
600W/CH 4Ω load
1200W/CH 2Ω load
2: Total harmonic distortion 20-20,000 Hz:
0.05% 2Ω load
0.02% 4 to 16 Ω load
3: Intermodulation distortion: 0.01%
4: Frequency characteristics:
POWER IN (At rated continuous average output)
20 – 20,000 Hz +0, -0.2 db
POWER IN (At 1 watt output)
0.5 – 160,000 Hz +0, -3 db
5: Damping factor: 1000 (with 8Ω load,50 Hz)
6: Input Sensitivity, Input Impedance
Balanced input 40K Ω
RCA input 20K Ω
7: Gain power: 28 db
8: S/N Ratio, input-converted Noise: 120 db
9: Load impedance: 2-16 ohms
10: Power requirements: AC ~ 220V 50/60Hz
11: Static power consumption: 300 Watts idle
12: Maximum size: Width 430 mm Height 220 mm (excluding feet) Depth 520 mm
13: Net weight: 42KG per unit

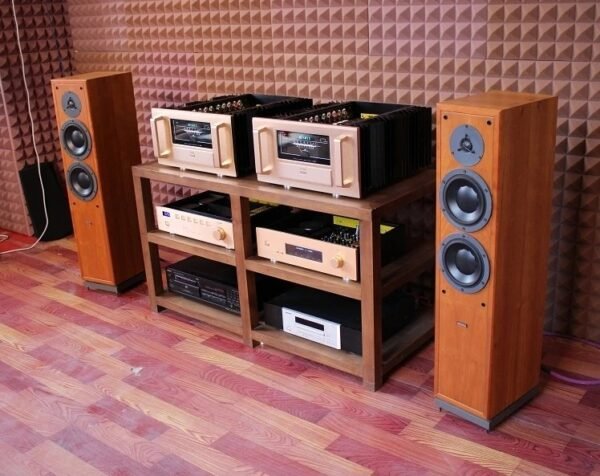

The picture above is a very cool connection method, using 4 A200 to drive a pair of awesome speakers, 2 A200 to drive mid-high, and 2 A200 to drive bass.
